The Rotary Drum Screen, also known as Rotary Screens, Drum Screen Recycling, Waste Trommel Screen and Municipal Solid Waste Trommel Screen, is a high-efficiency self-cleaning rotary screening machine and indispensable core equipment for municipal solid waste disposal, solid waste sorting production line and waste resource recycling plant. Manufactured by Henan Ruichi, this rotary trommel screen classifies mixed solid materials by particle size grading, perfectly matching with Conveyor Belt, Waste Feeder, Vibrating Feeder, Plate Feeder and complete municipal solid waste feeding system, providing stable pre-screening processing for full-automatic waste sorting and recycling projects.

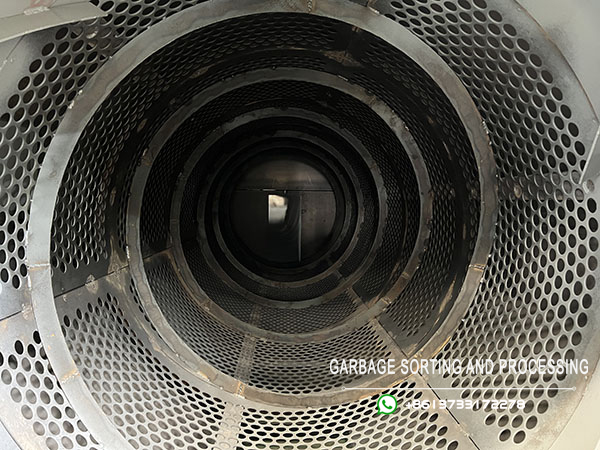

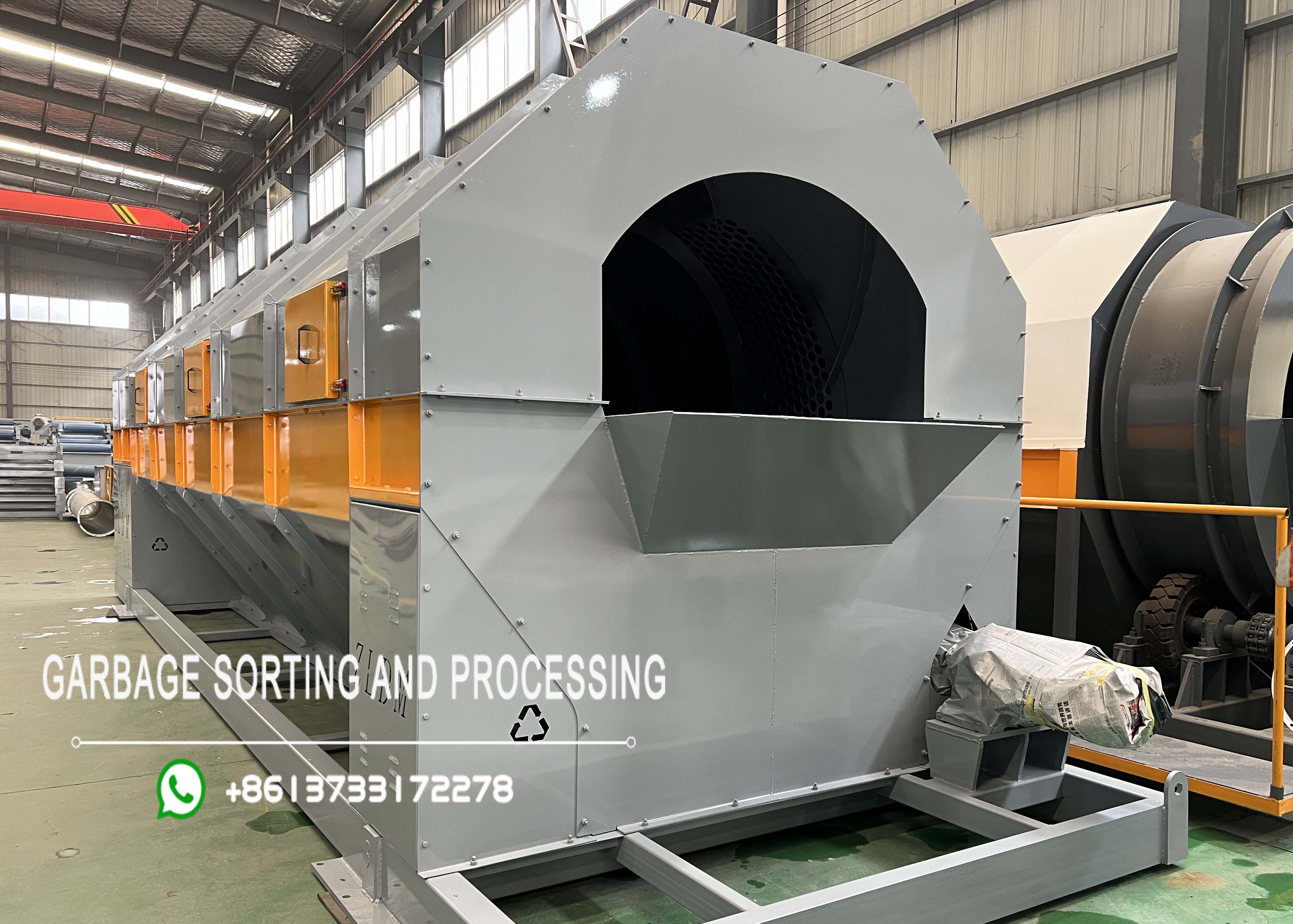

Henan Ruichi Rotary Drum Screen consists of driving motor, reducer, rotary roller device, heavy-duty frame, feeding inlet and material discharge outlet. It adopts inclined multi-stage rotary screen cylinder with gradient mesh aperture from small to large to realize progressive multi-stage particle size screening. The screen surface adopts wear-resistant steel plate, perforated plate and woven mesh optional, specially adapted to wet garbage, sticky materials and mixed complex waste. Equipped with automatic external cleaning brush device, it effectively solves screen mesh blockage and ensures continuous stable operation in long-term waste sorting work.
The whole inclined drum cylinder rotates stably driven by motor and coupling transmission system. After evenly feeding by Plate Feeder or Vibrating Feeder, mixed waste materials roll and tumble forward inside the rotating drum. Fine particles smaller than mesh aperture pass through the screen and fall down separately, while large-size materials are discharged along the drum inclination. The continuous tumbling motion realizes automatic grading classification, and cooperates with self-cleaning brush to avoid material adhesion and clogging, suitable for continuous large-volume waste pre-screening in waste recycling lines.
• Screening Particle Size: 3–150 mm (conventional custom 50–150 mm)
• Processing Capacity: 20–500 t/h, adjustable according to waste composition and feeding volume
• Matching Power: 5.5–22kw customized configuration
• Certification: CE / ISO 9001 certified quality standard
• Manufacturing Origin: Henan China, professional waste sorting equipment factory direct supply
High screening efficiency, stable rotary operation, low running noise and heavy-duty integral welded frame structure for long service life. Modular screen mesh design and detachable protective hood make daily inspection and maintenance simple and convenient. The equipment can be seamlessly connected with waste sorting machine, Magnetic Separator, Air Classifier, Bag Opener and Hydraulic Baler to form a complete closed-loop waste recycling production line. We support full-size non-standard customization, adopt energy-saving driving design, and meet environmental protection and sustainable waste management project standards.
Widely applied to municipal solid waste sorting plant, household waste treatment project, construction and demolition waste recycling, landfill stale waste mining sorting, sand and gravel grading and organic compost pre-sorting. It effectively separates organic matter, inorganic impurities and granular materials, and forms a complete waste reduction and resource utilization system matched with waste shredder machine and horizontal baler machine.
| Equipment Model | Configuration Power | Drum Diameter(mm) | Drum Length(mm) | Screening Aperture(mm) |
|---|---|---|---|---|
| GTS-1560 | 5.5X2 | 1500 | 6000 | 10-20 |
| GTS-2060 | 11X2 | 2000 | 6000 | 20-50 |
| GTS-2080 | 11X2 | 2000 | 8000 | 20-50 |
| GTS-2580 | 18.5X2 | 2500 | 8000 | 20-50 |
Henan Ruichi is a professional integrated manufacturer of municipal solid waste sorting equipment, providing one-stop turnkey service including waste sorting line layout design, equipment matching customization, factory direct sales price, on-site installation guidance, staff training and long-term after-sales maintenance support. Our rotary drum trommel screen adopts upgraded wear-resistant technology, stable operation and high screening rate, and can be customized according to customer output, waste type and site conditions. Welcome global customers to consult us for detailed parameters, project solution design and latest factory quotation.
