AAC Block Panel Autoclave: Core Equipment for AAC Block Production Line & ALC Panel Production Line
The AAC block panel autoclave is the indispensable core high-pressure curing equipment matched with AAC block production line and AAC panel production line. It provides stable temperature and pressure conditions to complete the hydrothermal reaction of AAC green blocks, ensuring high strength, stable density and excellent performance of finished AAC blocks, ALC wall panels and precast wall materials.
This article covers the working principle, classification, technical parameters, advantages, installation and maintenance of autoclave supporting for full set AAC production line and ALC panel production line, helping you select supporting curing equipment for your AAC factory project.
1. What is an AAC Block Panel Autoclave?

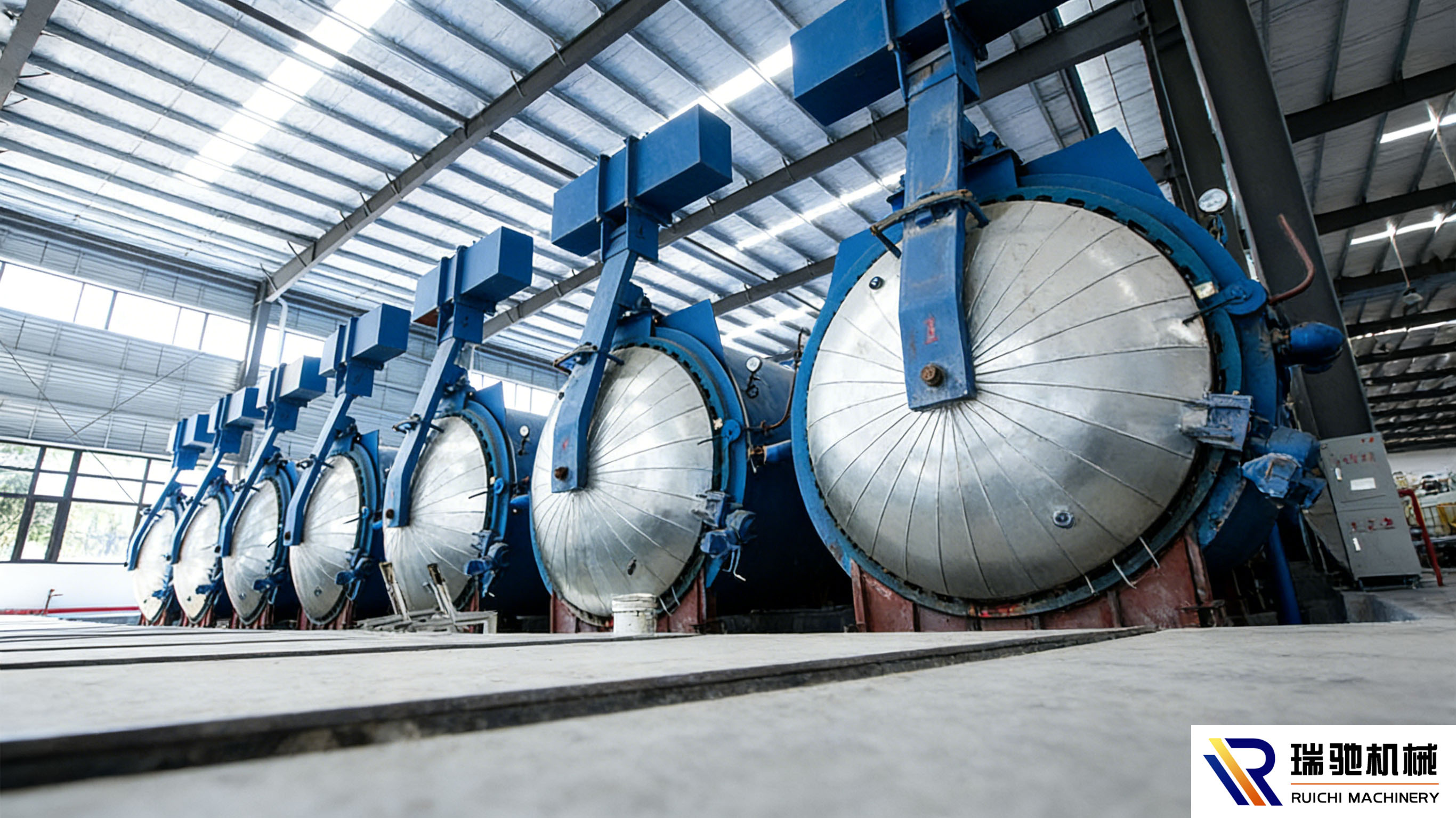

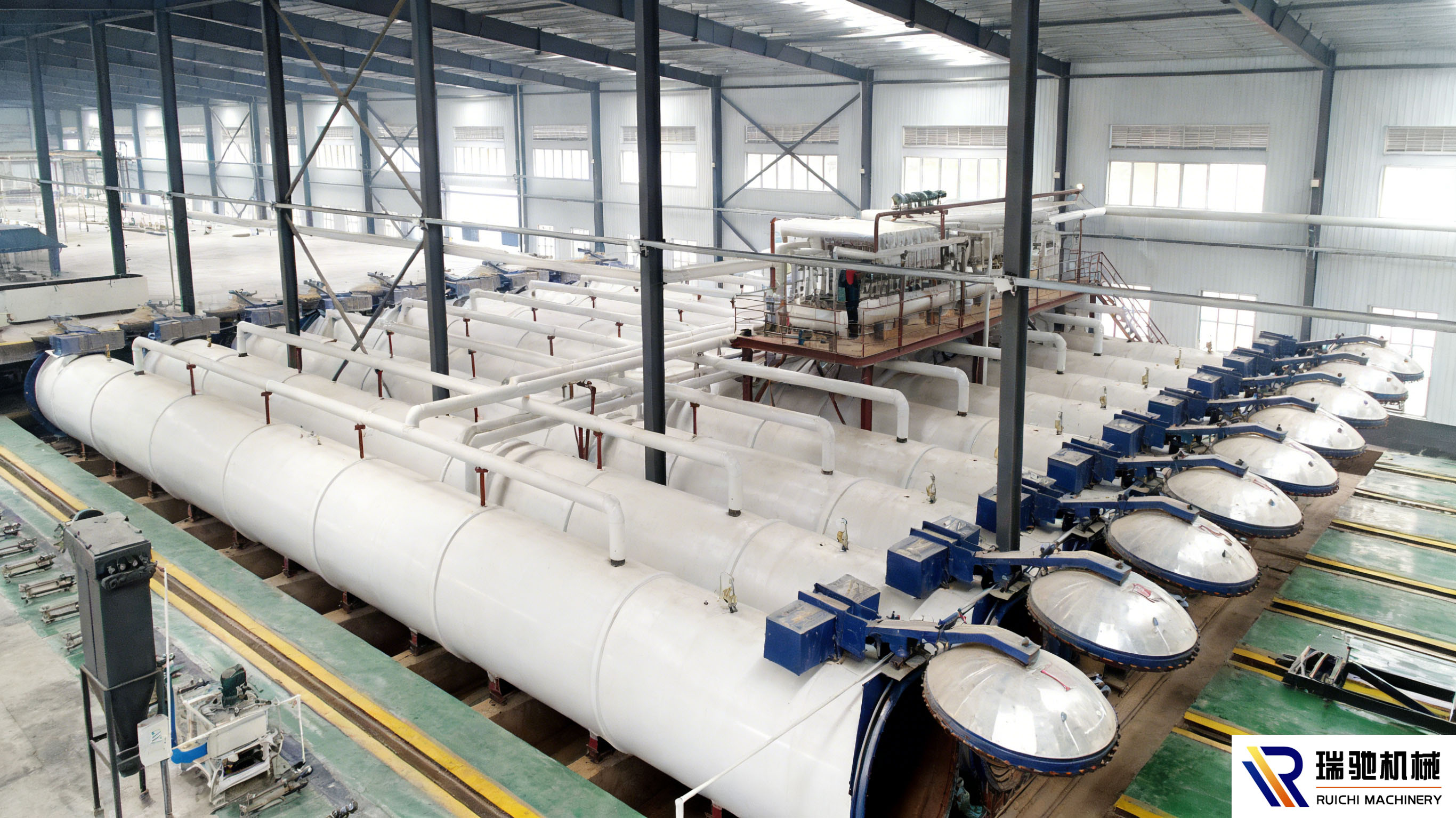

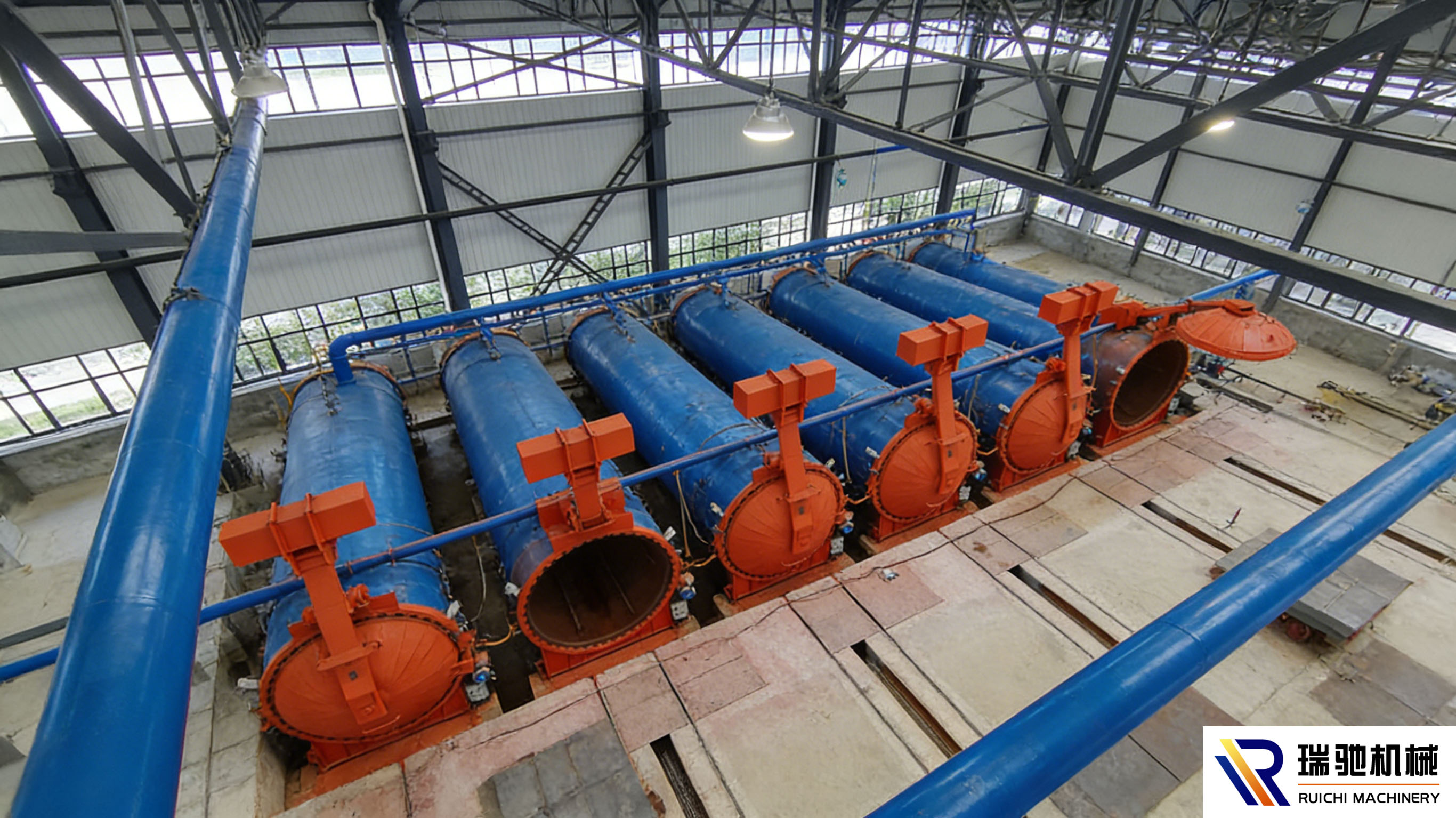

An AAC autoclave is a horizontal pressure vessel specially supporting the steam curing process of aerated concrete products in AAC block production line and ALC panel production line. Under high-pressure saturated steam, the calcium silicate hydrate reaction inside AAC green bodies is accelerated, transforming semi-finished products into high-strength lightweight AAC blocks and reinforced ALC panels.
It is supporting equipment for 50,000m³ to 600,000m³ annual capacity full AAC panel production line, and plays a decisive role in the overall operation of the AAC manufacturing process.
2. Working Principle of AAC Autoclave
2.1 Steam Curing Process
1. AAC green blocks are transported into the autoclave
2. The autoclave door is locked and sealed
3. High-pressure steam is injected to heat and pressurize
4. Constant temperature and pressure curing for 6–10 hours
5. Pressure release and cooling
6. Autoclave door opened for finished blocks and panels from AAC production line
2.2 Key Reaction Conditions
• Temperature: 180°C – 200°C
• Pressure: 1.0 – 1.3 MPa
• Holding time: 6 – 12 hours
• Steam source: boiler or waste heat recovery for complete AAC line
3. Standard Technical Parameters of AAC Autoclave
| Item |
Specification |
| Model |
Φ2.0m, Φ2.5m, Φ2.68m, Φ3.0m |
| Length |
21m, 26.5m, 31.5m, 36m |
| Design Pressure |
1.3 – 1.6 MPa |
| Working Pressure |
1.0 – 1.3 MPa |
| Design Temperature |
195°C – 205°C |
| Material |
Q345R Carbon Steel |
| Sealing Type |
Automatic Quick Opening Door, matched for AAC block and panel line |
4. Key Advantages of Autoclave for AAC Block & ALC Panel Production Line
• High Safety Performance: Double safety interlock, pressure sensor, safety valve, perfectly matched for full AAC production line
• Energy Saving: Insulation layer design reduces heat loss, lowers overall operation cost of AAC panel production line
• Long Service Life: Q345R steel material, service life up to 15 – 20 years, stable supporting for long-term AAC project operation
• High Efficiency: Fast opening door, automatic control, fits the continuous production rhythm of ALC panel production line
• Stable Curing Effect: Uniform internal temperature and pressure, improve finished product qualification rate of AAC blocks and panels
• Customizable Size: Can be customized according to AAC block production line capacity and factory layout
5. FAQ: Common Questions for AAC & ALC Production Line Supporting
Q1: How many autoclaves need to configure for complete AAC block production line?
For 50,000–100,000 m³/year AAC block production line: 2–4 units
For 150,000–300,000 m³/year ALC panel production line: 6–10 units
Q2: What is the lifespan of supporting autoclave for AAC line?
Under normal maintenance, the service life is 15–20 years, fully meeting the long-term operation demand of AAC panel production line.
Q3: Do you provide full line installation and commissioning?
Yes, we provide overall layout design, on-site installation, commissioning and operator training for complete AAC block production line and ALC panel production line.
Q4: Can this autoclave match both block and panel production line?
Yes, it is universal for supporting AAC block production line, AAC panel production line and reinforced ALC panel production line.
Q5: What is the delivery time for full set AAC line supporting autoclave?
Normal delivery: 30–45 days after deposit payment, synchronous delivery with full AAC production line equipment.
Autoclave is the core supporting equipment of AAC block production line and ALC panel production line. Choosing high-quality, energy-saving and stable autoclaves directly determines the finished product quality, continuous production efficiency and overall operating costs of the entire AAC factory. Ruichi Equipment provides full-size customized autoclave and full turnkey solution for AAC panel block production line, supporting global customers' new AAC plant construction and production line upgrading.
