Cone Crusher is professional secondary and tertiary crushing equipment specially designed for hard rock and medium-hard mineral materials. It includes four mainstream types: Symons Cone Crusher also known as Spring Cone Crusher, Hydraulic Cone Crusher, Single Cylinder Cone Crusher and Multi Cylinder Cone Crusher. Widely used in quarry, mining, aggregate production line, road and railway construction projects, it perfectly matches jaw crusher and impact crusher to form a complete stone crushing and screening system.
Our cone crusher covers full common models of Symons spring type, hydraulic type, single cylinder and multi cylinder type, featuring strong crushing force, reliable overload protection, excellent particle shape and low operating cost. It is the ideal choice for processing granite, basalt, limestone, river stone, iron ore, copper ore and other hard raw materials, supporting both fixed crushing plant and mobile crushing station layout.
Symons Cone Crusher is the standard name of Spring Cone Crusher, adopting spring safety protection structure, simple design and low investment cost. Common models include PYB600, PYB900, PYB1200, PYB1750, PYB2200. It is suitable for medium crushing and conventional stone processing, easy to install and maintain, ideal for small and medium-sized sand and gravel plants with stable working conditions.
Hydraulic Cone Crusher uses full hydraulic adjustment and overload protection, fast discharge opening adjustment, automatic clearing of crushing cavity when blocked. Common models: HP100, HP200, HP300, HP400, HP500, HP800. It has higher automation, stable performance, suitable for medium and large crushing lines with complex material conditions.

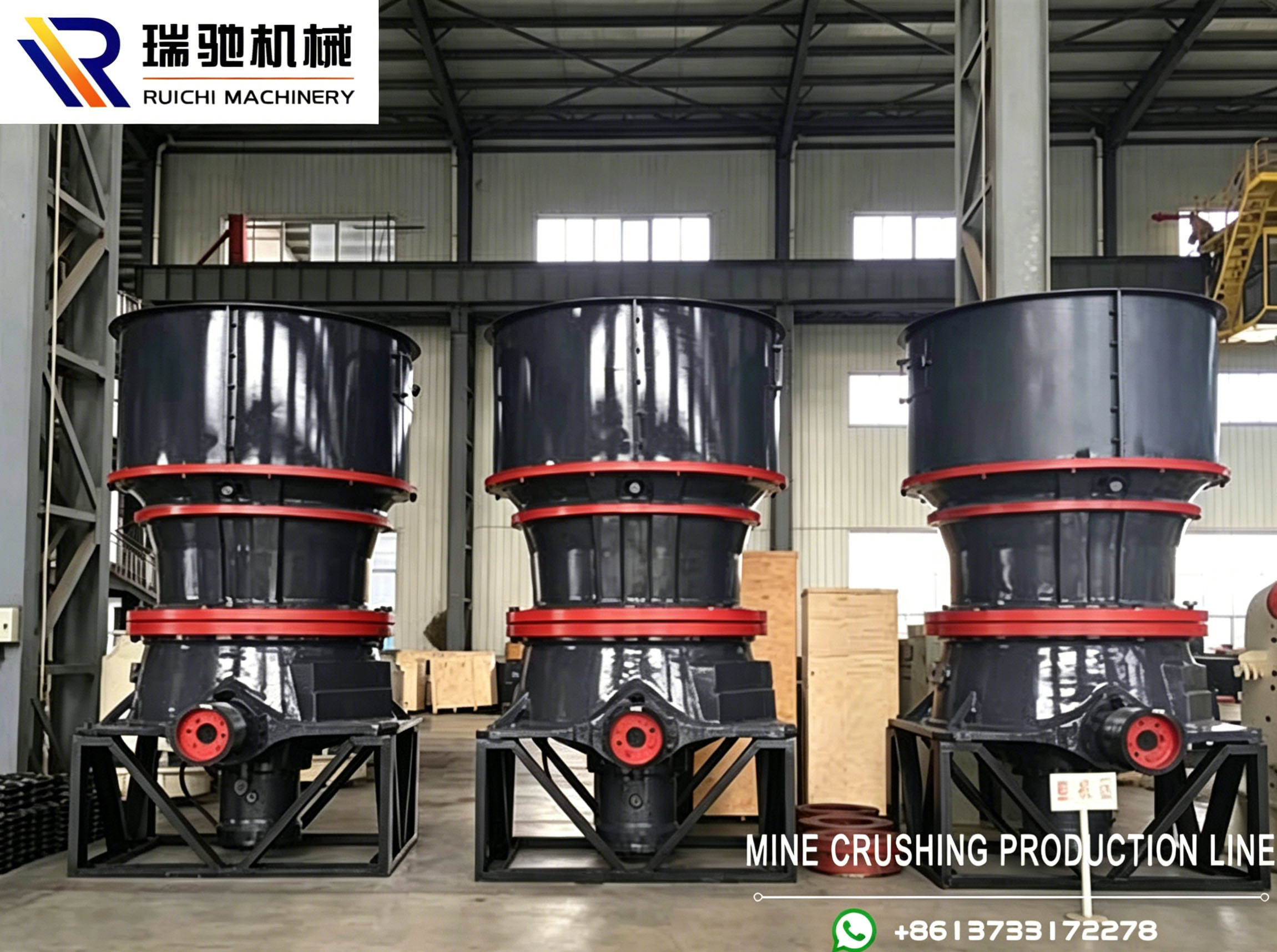

Single Cylinder Cone Crusher has simple structure, light weight and intelligent control system. Common models: SC160, SC250, SC315, SC450, SC600. It integrates adjustment, overload protection and lubrication in one cylinder, featuring fine crushing capacity, uniform finished grain size, widely used for tertiary fine crushing and sand shaping production lines.

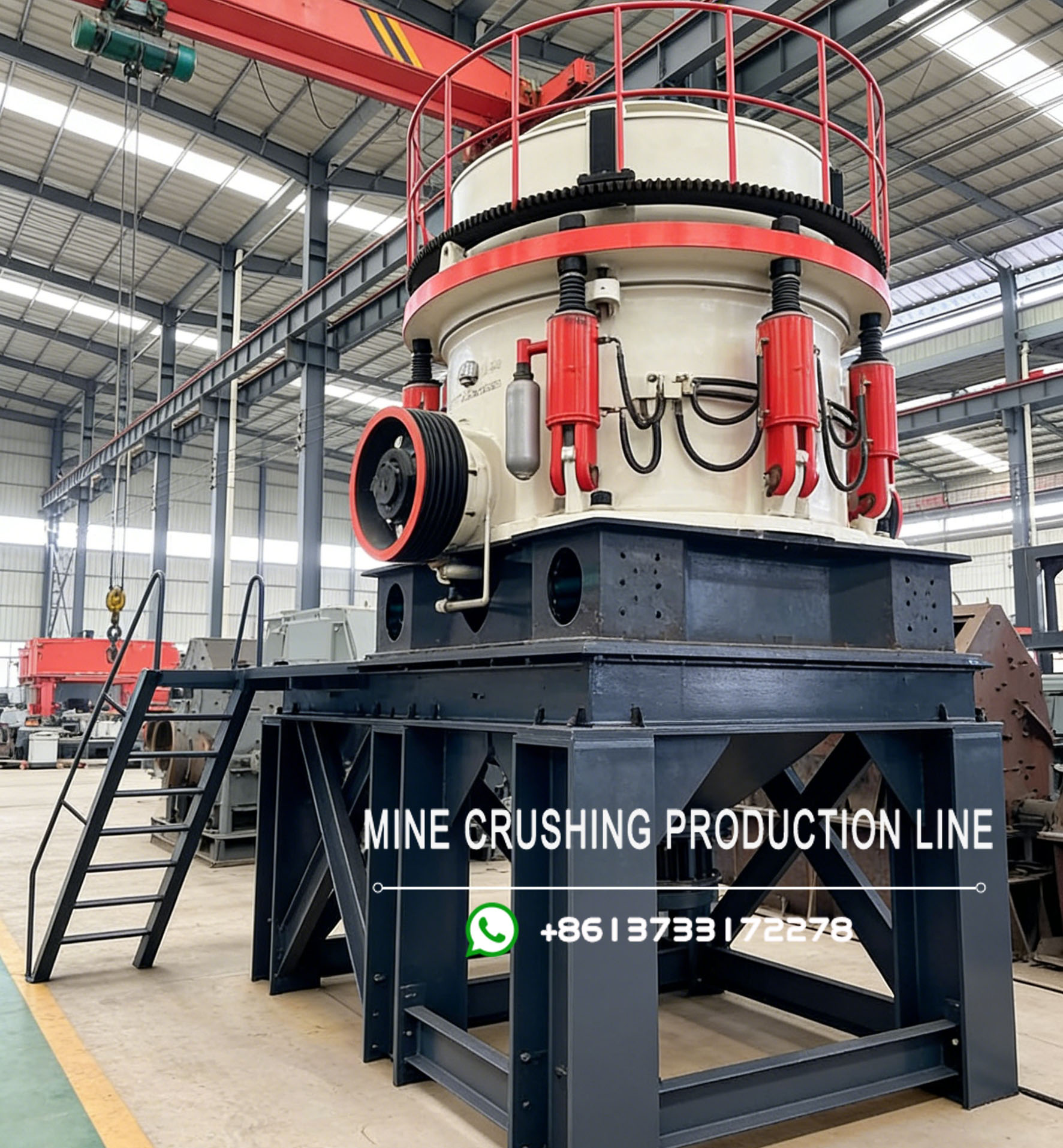

Multi Cylinder Cone Crusher owns multiple hydraulic cylinders providing strong crushing force and high processing capacity. Common models: MC200, MC300, MC400, MC500, MC600. It is suitable for large-scale mines, high-yield aggregate plants and high-hardness ore crushing, with high output, high efficiency and long service life of wearing parts.
Cone crusher adopts laminated crushing principle, strong compression force for high-hardness rocks, less powder content and good cubic particle shape, improving aggregate commercial value greatly.
Symons spring type uses spring reset protection; hydraulic, single cylinder and multi cylinder models adopt intelligent hydraulic protection, which can automatically avoid unbreakable materials and reduce equipment failure rate.
All cone crusher types and full series models can be matched with fixed crushing lines or mobile cone crushing plants, realizing flexible site transition and on-site crushing operation.
Our Symons cone crusher, hydraulic cone crusher, single cylinder and multi cylinder cone crusher all adopt optimized mantle and concave crushing cavity design, high manganese steel wear-resistant parts with long service life. The main shaft is thickened and forged, with strong bearing capacity and stable heavy-load operation.
The integrated lubrication system ensures full lubrication of bearings and transmission parts, lowering maintenance frequency and extending overall equipment service life.

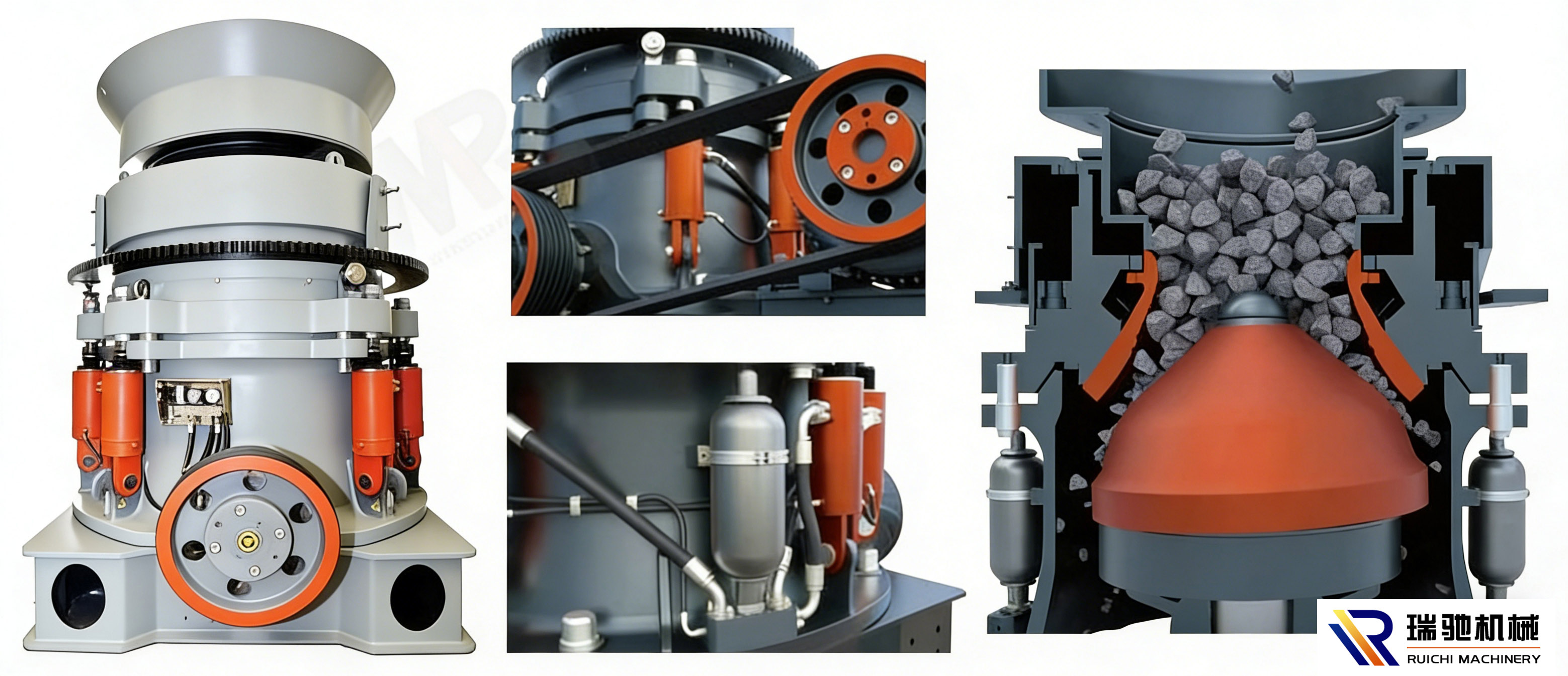

The motor drives the eccentric sleeve to rotate through transmission parts, making the main shaft and mantle do pendulum rotary motion around the fixed concave.
Raw materials fall into the crushing cavity, squeezed, impacted and crushed between mantle and concave. Under the action of laminated crushing, materials are broken along the internal texture.
Small particles discharge from the bottom gap, while large materials stay in the cavity for repeated crushing until reaching the required finished particle size.
| Cone Crusher Type | Common Models | Capacity(t/h) | Feed Size(mm) | Motor Power(kw) |
|---|---|---|---|---|
| Symons / Spring Cone Crusher | PYB600 / PYB900 / PYB1200 / PYB1750 | 20-180 | 60-210 | 30-160 |
| Hydraulic Cone Crusher | HP100 / HP200 / HP300 / HP400 | 50-250 | 120-220 | 90-220 |
| Single Cylinder Cone Crusher | SC160 / SC250 / SC315 / SC450 | 60-300 | 150-280 | 132-280 |
| Multi Cylinder Cone Crusher | MC200 / MC300 / MC400 / MC500 | 100-450 | 180-320 | 160-350 |
Cone Crusher including Symons spring type, hydraulic type, single cylinder and multi cylinder type is the core equipment of hard rock crushing production line, solving the problem of difficult crushing of high-hardness materials. Reasonable selection of different series and models can effectively reduce production cost and improve aggregate quality.
It realizes high-efficiency secondary and tertiary crushing, cooperates with jaw crusher and sand making machine to build a full-process aggregate production solution, bringing stable economic benefits to mining and sand plant investors.
Symons Cone Crusher is another professional name for Spring Cone Crusher, with PYB series as mainstream common models, cost-effective and widely used in medium crushing projects.
Small budget: Symons Spring Cone Crusher PYB900/PYB1200; medium production: Hydraulic HP200/HP300; fine crushing: Single Cylinder SC315; large mine high output: Multi Cylinder MC400/MC500.
Cone crusher is suitable for high-hardness rock lamination crushing; impact crusher is for medium-hard materials with good particle shaping effect.
Yes, we provide one-stop solution including jaw crusher, full series cone crusher, vibrating screen, belt conveyor and full layout design.
We are professional cone crusher manufacturer integrating R&D, production and sales, supplying full series of Symons Spring Cone Crusher, Hydraulic Cone Crusher, Single Cylinder and Multi Cylinder Cone Crusher with complete common models.
Pre-sales Service: Free material analysis, model recommendation, production line flow design and budget quotation.
In-sales Service: Factory visit arrangement, production progress follow-up, professional installation and commissioning guidance.
After-sales Service: 72-hour rapid response, global technical support, supply of original wearing parts and lifetime maintenance service.
If you need reliable Symons cone crusher, hydraulic cone crusher or customized aggregate production line solutions, please contact us for detailed parameter list and competitive price.
