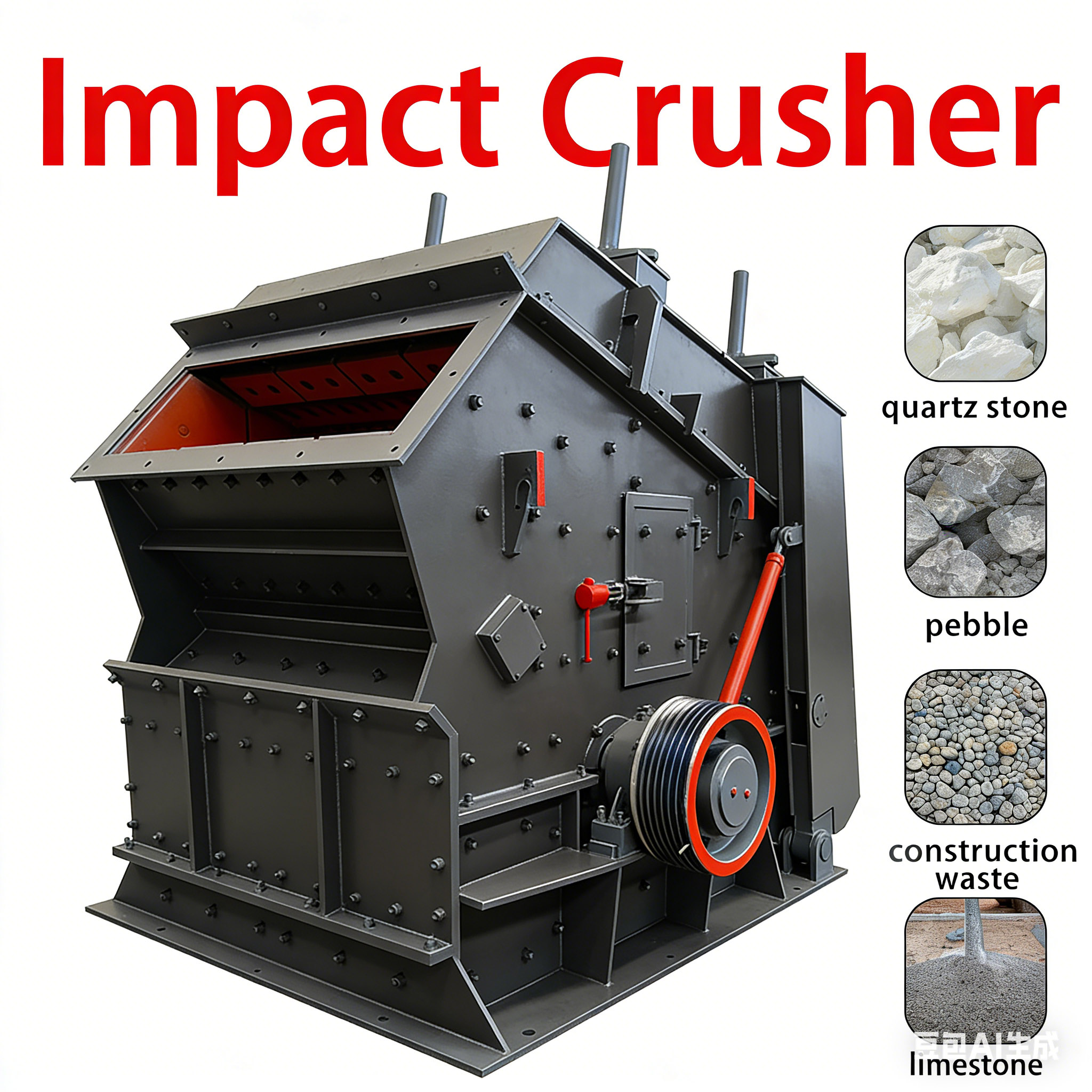

The Impact Crusher, also widely known as Impact Crushing Machine, is essential secondary crushing equipment in modern stone crushing plants, mining operations, and aggregate production lines. Designed for medium and fine crushing, it delivers excellent particle shaping capacity and is perfectly compatible with jaw crushers, cone crushers, vibrating screens and belt conveyors to build a complete closed-circuit crushing system.
Our industrial impact crusher features heavy-duty rotor, high wear-resisting impact plates, and stable operation performance. It is the ideal choice for processing granite, basalt, limestone, river stone, construction waste and various ores, widely applied in road construction, railway engineering, water conservancy and quarry mining projects.
The impact crushing principle makes finished aggregates cubic-shaped, uniform gradation and low flakiness ratio, greatly improving commercial value of manufactured sand and road base materials.
Adopts high-chromium impact plate and durable rotor assembly, effectively reducing wear consumption and lowering daily maintenance cost for impact crushing machine.
Simple discharge opening adjustment structure allows flexible control of finished material size, suitable for multiple crushing requirements in different crushing plants.

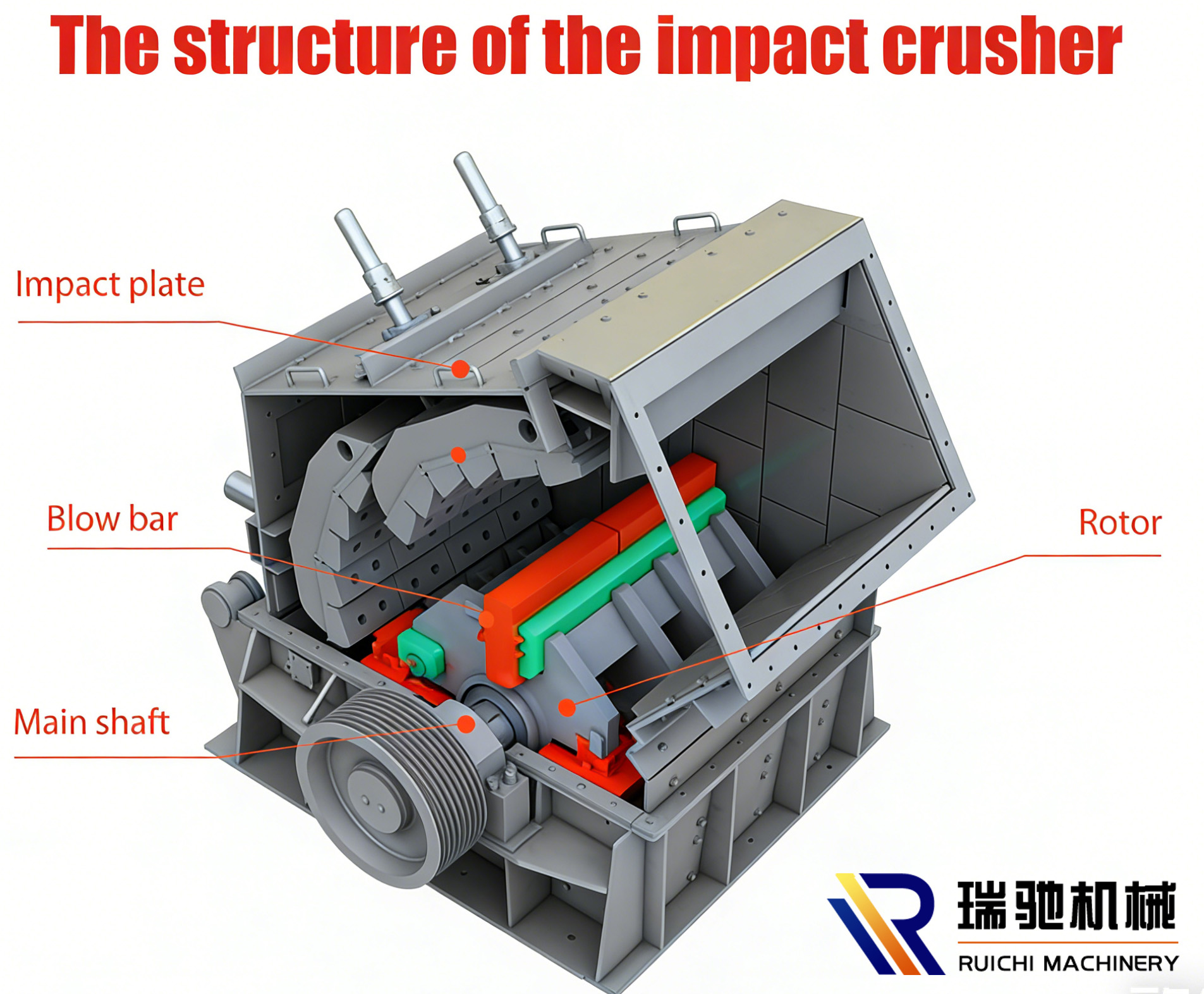

Our impact crusher adopts optimized three-cavity crushing structure, including rotor, impact rack, spring buffer system and heavy-duty frame. The overall structure is rigid, vibration minimized, and operation more stable under heavy load working conditions.
Equipped with safety protection device, it can automatically discharge uncrushable materials to avoid internal damage and reduce downtime failure rate.
Integrated motor installation and compact layout save floor space, convenient for both fixed crushing station and mobile impact crushing plant configuration.
Raw materials fall into the rotor rotating at high speed, and are thrown out under centrifugal force, impacting the impact plate violently for primary crushing.
Materials rebound from impact plate and collide with flying materials again, realizing multiple crushing through impact, collision, grinding and abrasion.
Qualified materials discharge from the bottom, while oversized materials stay inside the crushing cavity for repeated crushing until reaching required particle size.
| Model | Feed Size(mm) | Discharge Size(mm) | Capacity(t/h) | Motor Power(kw) |
|---|---|---|---|---|
| PF1010 | ≤250 | 20-60 | 40-80 | 75 |
| PF1210 | ≤300 | 20-60 | 50-100 | 90 |
| PF1214 | ≤350 | 20-60 | 80-150 | 132 |
| PF1315 | ≤400 | 20-60 | 120-200 | 160 |
As core secondary crushing equipment, impact crusher optimizes the overall layout of aggregate production line, improves finished aggregate quality, and reduces investment and operation cost for quarry and sand plant owners.
It supports both stationary crushing line and mobile crushing station configuration, adapting to complex site conditions and realizing flexible on-site crushing, which greatly saves material transportation cost for engineering projects.
It is suitable for limestone, granite, basalt, river stone, concrete construction waste and medium-hard ore materials.
Mainly for secondary and fine crushing, matched with jaw crusher to form a complete two-stage crushing system.
Yes, we offer personalized impact crusher model selection, process layout design and full set of supporting equipment solution.
We are a professional manufacturer of impact crusher, impact crushing machine and complete crushing & screening equipment. With mature production technology and strict quality control, we export reliable crushing equipment to global markets.
Pre-sales: Free project consultation, flow chart design, model selection according to your hourly output and raw materials.
In-sales: Factory inspection, production follow-up, professional installation guidance and technical training.
After-sales: 72-hour rapid after-sales response, lifetime technical support and supply of original spare parts.
If you need high-quality impact crusher or complete aggregate production line solution, feel free to contact us for detailed quotation and technical support.
