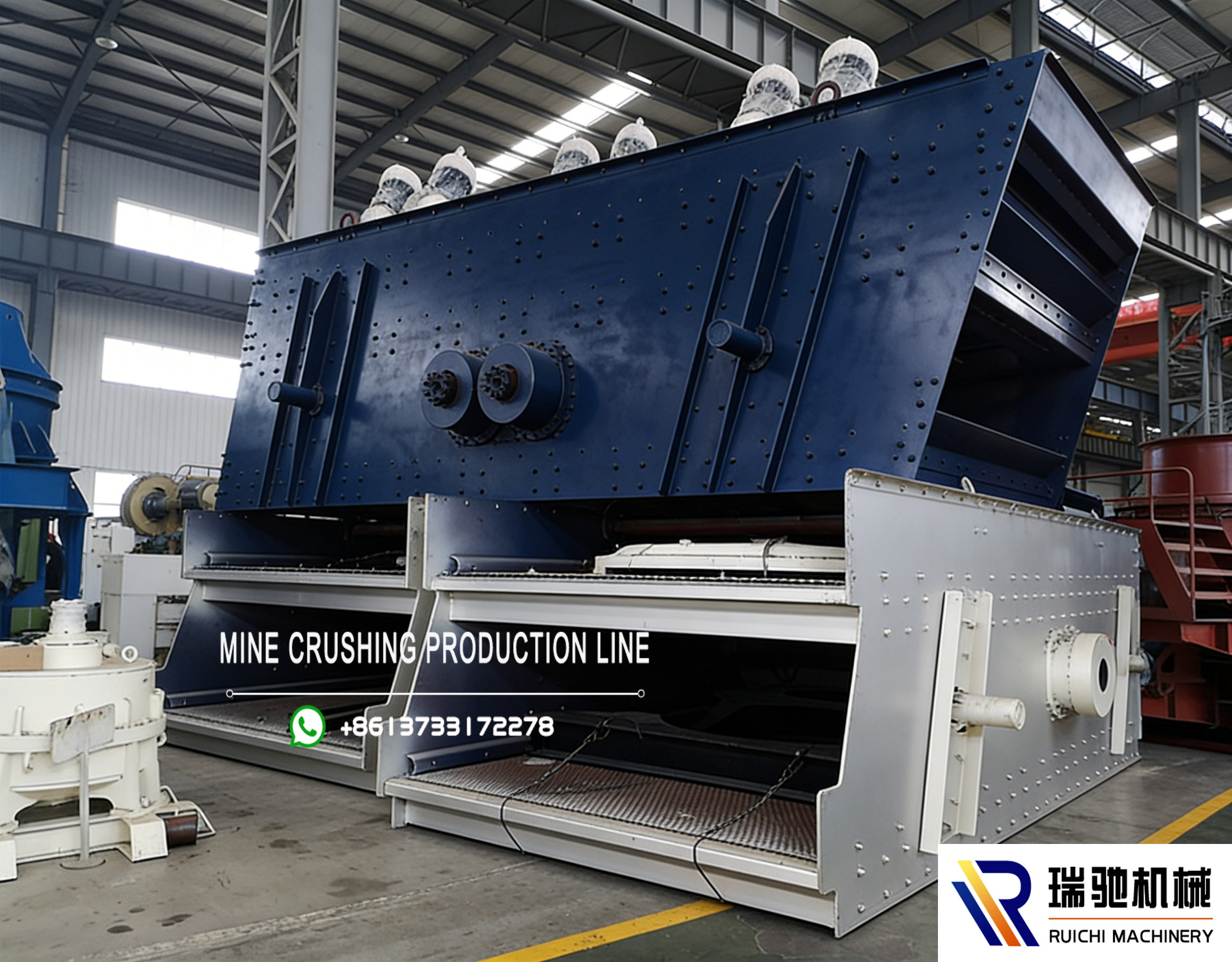

Vibrating screen is one of the most important screening machines in mining, quarry, aggregate and construction industries. It is widely used in stone crushing plant, sand making production line, mobile crusher plant and aggregate crushing system for efficient material classification and screening.
Our industrial vibrating screens are suitable for granite, basalt, limestone, river stone, ore and recycled aggregate processing. They are ideal supporting equipment for jaw crusher, impact crusher, cone crusher and VSI sand making machine.

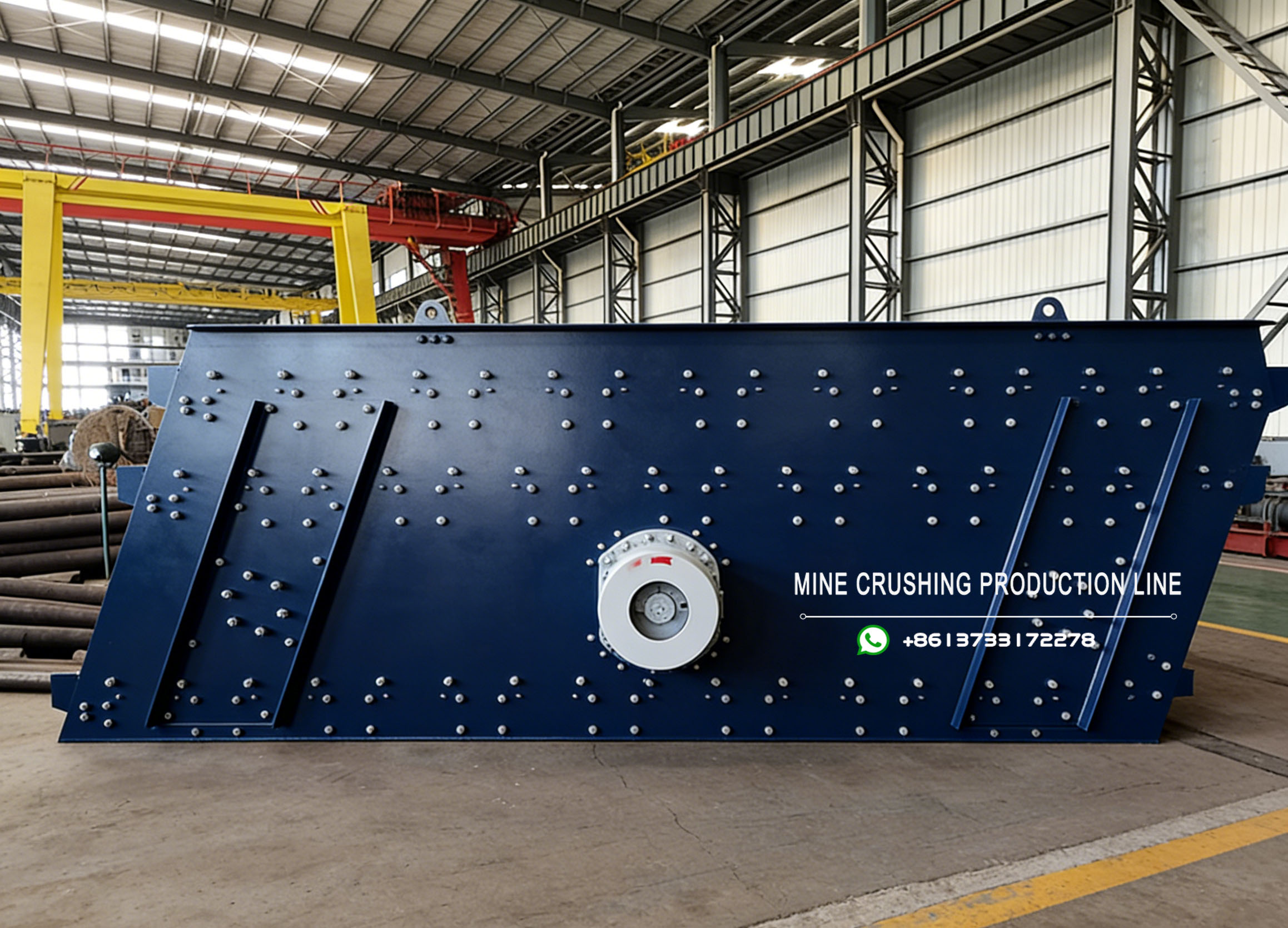

Circular vibrating screen is widely used in stone crushing equipment and mining crushing equipment. It provides strong vibration force, stable operation and high screening efficiency for aggregate production lines and quarry crushing plants.
Linear vibrating screen is suitable for sand screening equipment and sand production line projects. It offers precise material classification for artificial sand making machine and construction sand production systems.

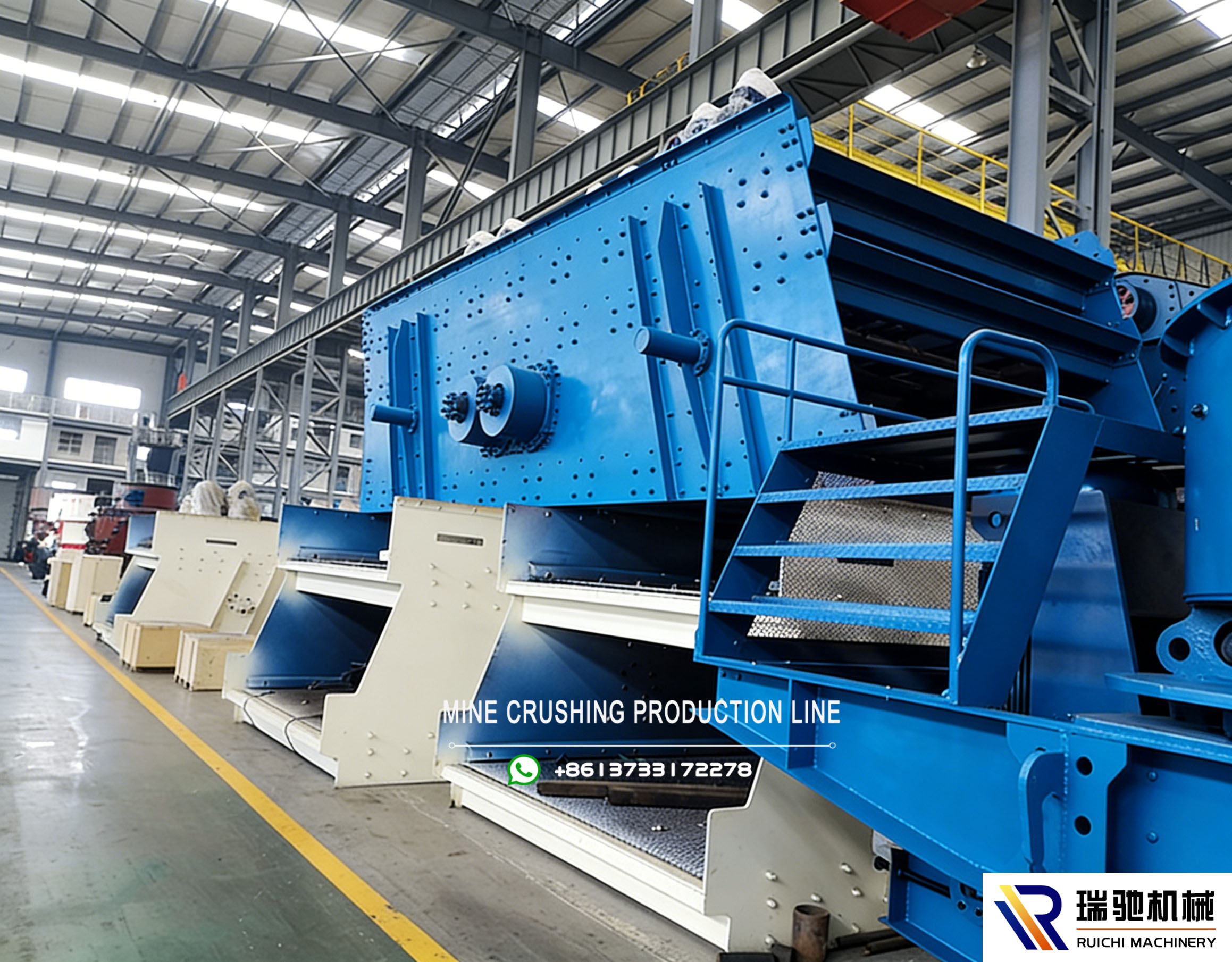

Elliptical vibrating screen combines the advantages of circular and linear motion. It is ideal for mobile crusher plant, portable crushing plant and high-capacity aggregate screening applications.
Suitable for complete stone crushing production line and aggregate crushing plant with large processing capacity and stable screening performance.
Manufactured with high-strength steel and reliable vibration exciter for long service life in mining and quarry environments.
Widely used for screening granite, basalt, limestone, river pebble, ore, construction waste and recycled aggregate materials.
| Model | Screen Size (mm) | Layers | Capacity (t/h) | Motor Power (kW) | Weight (kg) |
|---|---|---|---|---|---|
| 2YK1230 | 1200×3000 | 2 | 30-120 | 7.5 | 2800 |
| 3YK1230 | 1200×3000 | 3 | 30-120 | 7.5 | 2950 |
| 2YK1545 | 1500×4500 | 2 | 50-200 | 11 | 4200 |
| 3YK1545 | 1500×4500 | 3 | 50-200 | 11 | 4500 |
| 2YK1848 | 1800×4800 | 2 | 80-300 | 15 | 5800 |
| 3YK1848 | 1800×4800 | 3 | 80-300 | 15 | 6100 |
| 4YK1848 | 1800×4800 | 4 | 80-300 | 15 | 6500 |
| 2YK1860 | 1800×6000 | 2 | 100-400 | 18.5 | 7200 |
| 3YK1860 | 1800×6000 | 3 | 100-400 | 18.5 | 7600 |
| 4YK1860 | 1800×6000 | 4 | 100-400 | 18.5 | 8100 |
| 2YK2160 | 2100×6000 | 2 | 120-500 | 22 | 8800 |
| 3YK2160 | 2100×6000 | 3 | 120-500 | 22 | 9300 |
| 2YK2460 | 2400×6000 | 2 | 150-600 | 30 | 10500 |
| 3YK2460 | 2400×6000 | 3 | 150-600 | 30 | 11200 |
| DZSF1025 (Linear) | 1000×2500 | 1-3 | 20-80 | 2.2×2 | 1600 |
| DZSF1530 (Linear) | 1500×3000 | 1-4 | 50-150 | 3×2 | 2800 |
| DZSF1836 (Linear) | 1800×3600 | 1-4 | 80-250 | 4×2 | 3600 |
Stone Crushing Plant: Used for aggregate screening and crushed stone classification.
Sand Making Production Line: Suitable for sand grading and fine material separation.

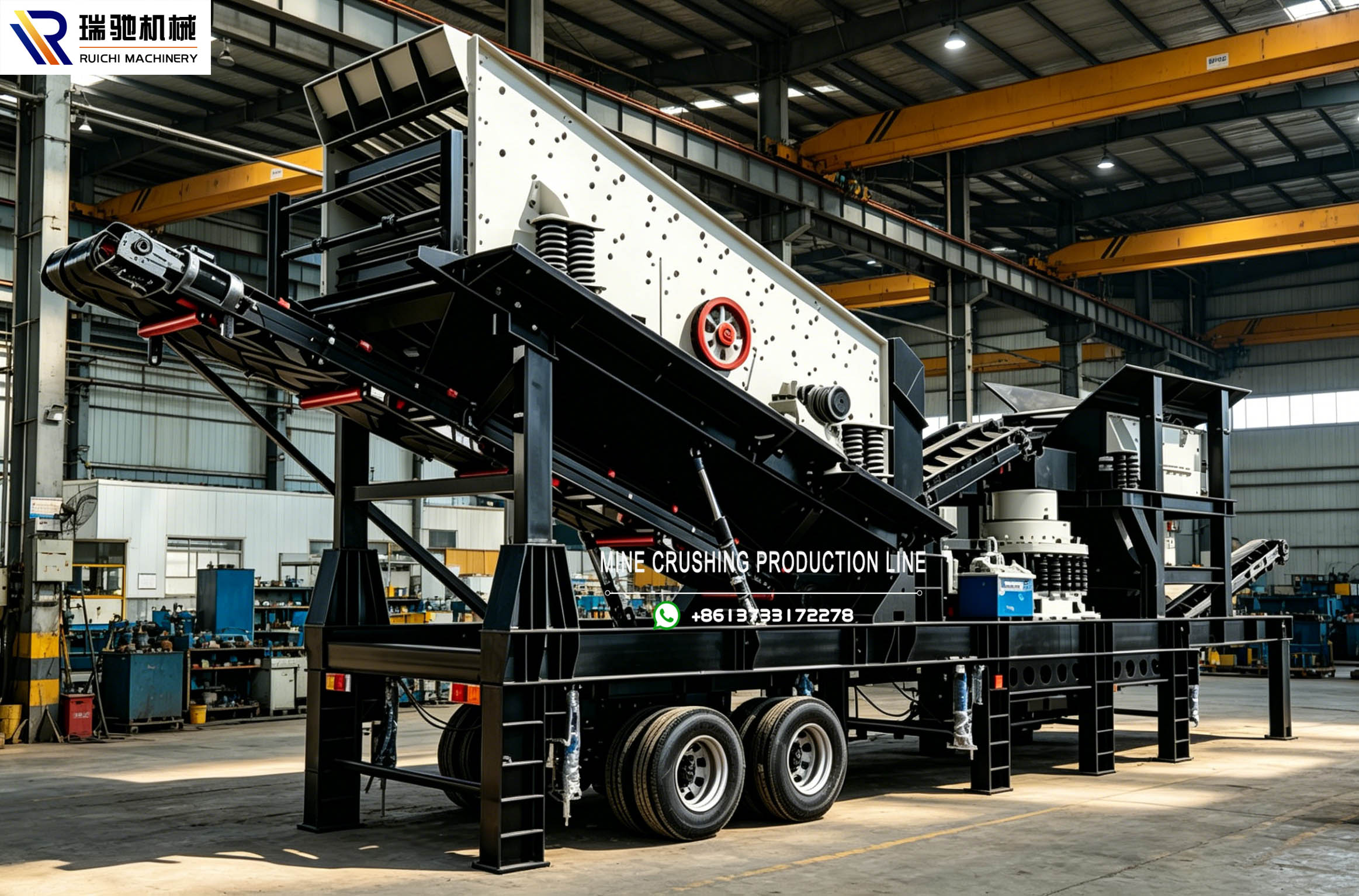

Mobile Crusher Plant: Matching equipment for portable crushing and screening systems.
Mining & Quarry Industry: Reliable screening equipment for ore, rock and quarry material processing.
Different models are selected according to material type, capacity and finished product size requirements.
Yes. Our vibrating screens are widely used in mobile crushing and screening equipment.
Yes. We supply complete stone crushing plant, sand making production line and mobile crushing solutions.
Vibrating screen plays an important role in stone crushing plant, sand making production line and mining aggregate processing systems.
As a professional stone crusher manufacturer and aggregate equipment supplier, we provide reliable vibrating screens and customized crushing solutions for global customers.
