As the demand for efficient material separation and resource recycling grows, the disk screen separator becomes a core equipment in waste management, ore processing, plastic recycling, and biomass treatment. Our high-performance disk screen separator solves tough sorting problems, delivering precise, stable, and cost-effective results.

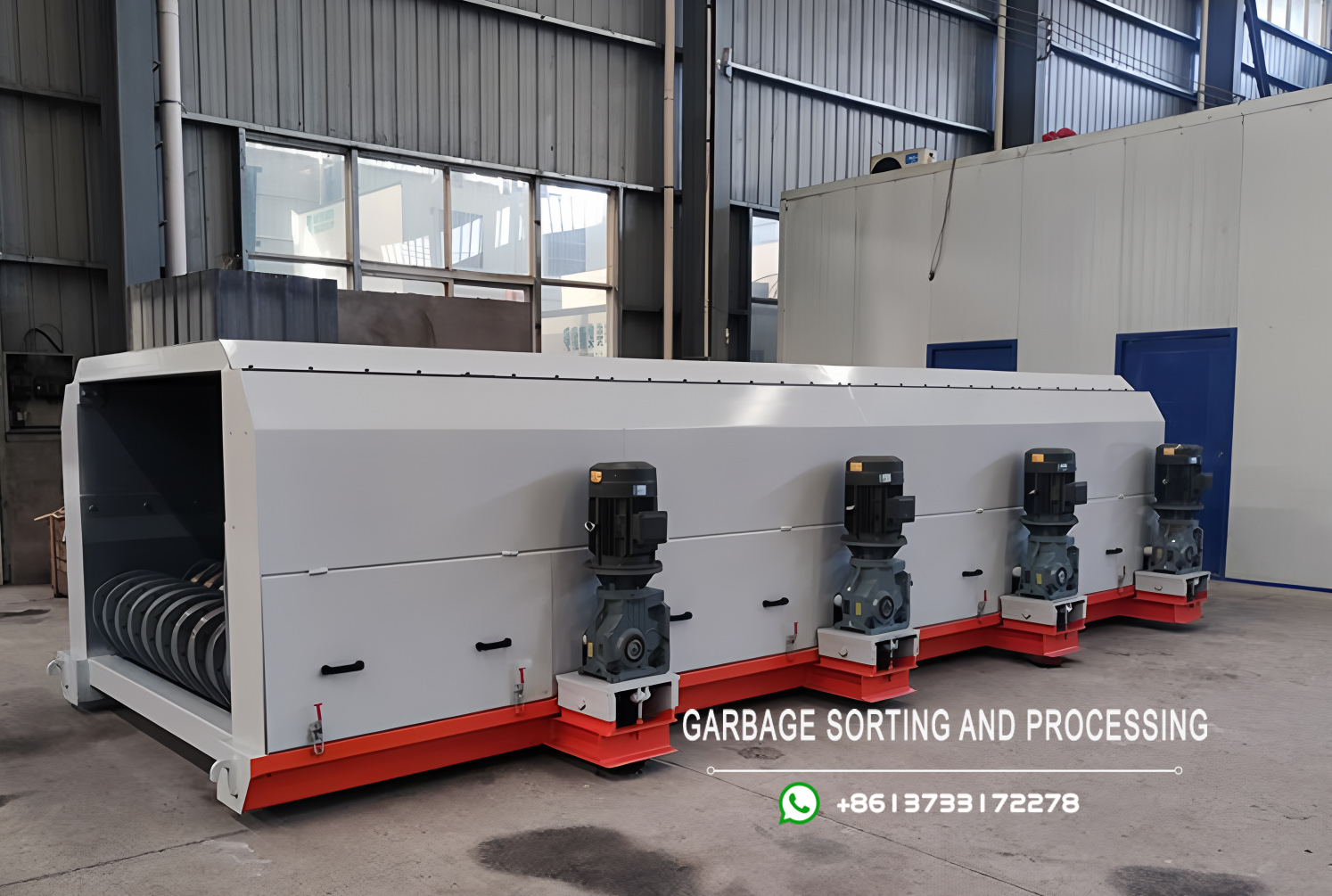

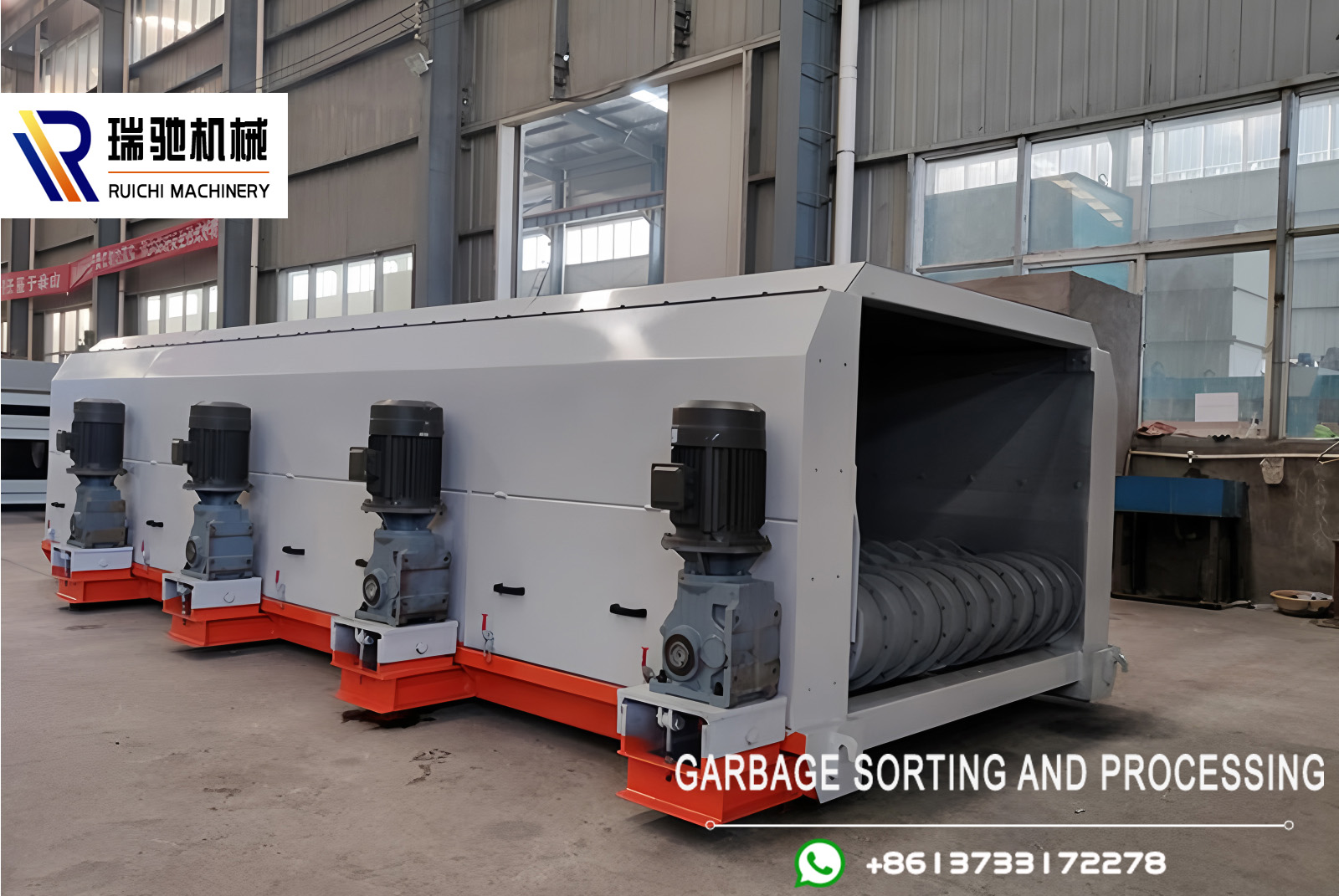

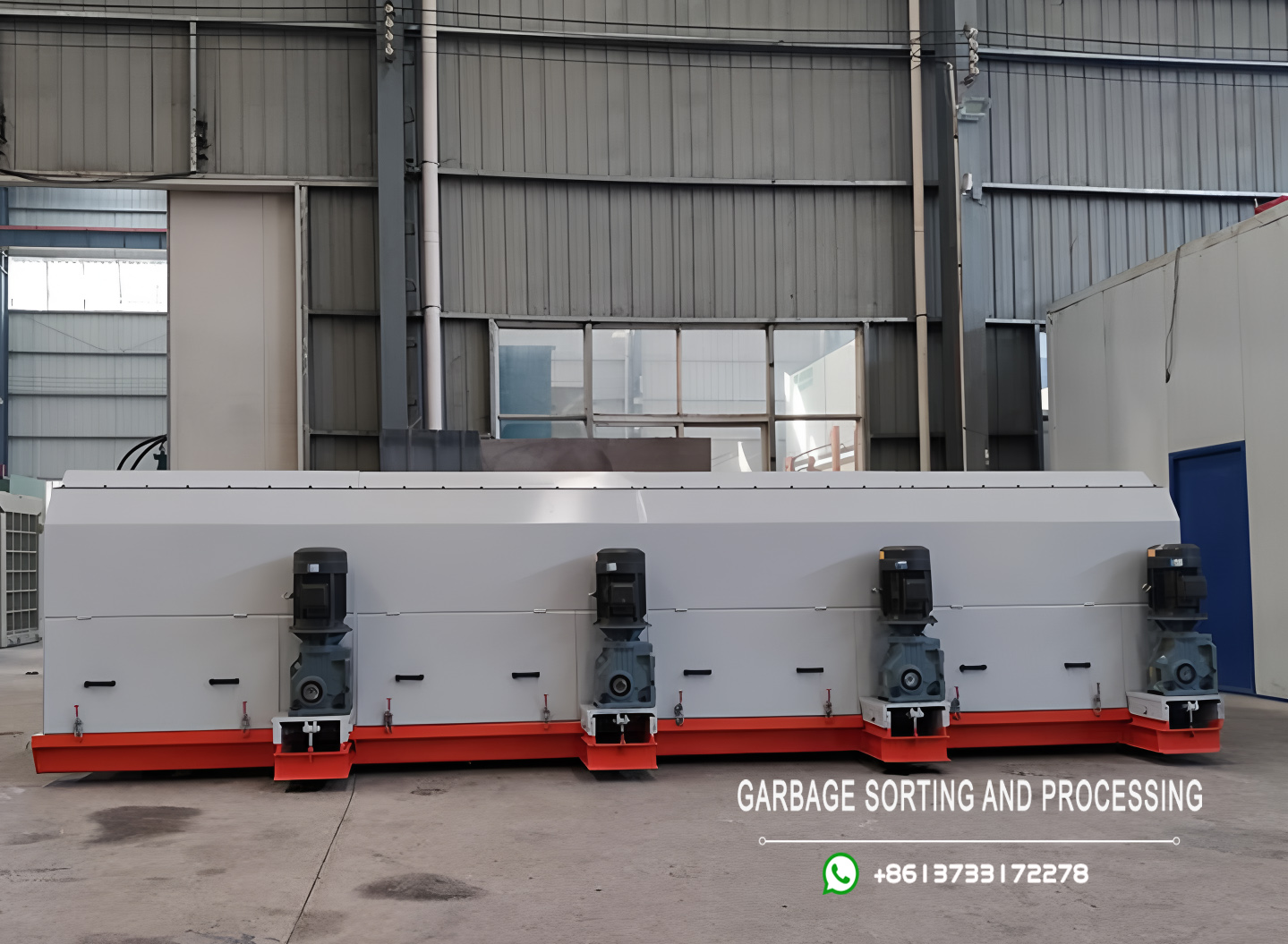

A disk screen separator (also called disc screen, rotary disc separator) classifies materials via rotating high-strength discs with adjustable gaps. Its key applications include:
· Municipal Solid Waste (MSW) Treatment: Separates fine organics, small debris, and bulky materials for subsequent recycling or disposal.
·
· Plastic & Recycling Industry: Separates plastic fragments and mixed recyclables to enhance purity.
·
· Biomass & Compost Processing: Sorts biomass materials and compost to ensure uniform particle size.
·
· Anti-Clogging & Anti-Wrapping: Hexagonal/octagonal discs with anti-wrapping sleeves reduce cleaning downtime by up to 90%.
·
· High Accuracy & Flexibility: Adjustable disc gaps (10-350mm) and rotational speed achieve 90% separation efficiency, adapting to material changes quickly.
·
· Energy-Saving & Low Cost: Variable frequency drive cuts power consumption by 70%; wear-resistant Hardox discs reduce maintenance costs by 90%.
·
· Compact & Adaptable: Modular design saves 30% space, fitting new or existing production lines, and handles wet/mixed materials effectively.
·
We offer customizable models (DSS-1630, DSS-1650, etc.). Standard parameters:
Parameter Standard Specification Customizable Range ---------------- ------------------------------------------------ ---------------------- Processing Capacity 15-60 t/h; up to 200 t/h (large model) 10-200 t/h Disc Diameter 250mm / 330mm 200-500mm Disc Gap 10-350mm 5-500mm Power 7.5kw - 15kw 5.5kw - 30kw Disc Material Q235 / Hardox Wear-Resistant Steel Stainless Steel, Corrosion-Resistant Alloys Warranty 1 Year for Key Components 2-3 Years (Extended Warranty Optional)
A: MSW, construction waste, ore, plastic fragments, biomass, and mixed recyclables—especially wet, stringy, or irregular materials.
A: Yes. We customize disc type, gap, dimensions, and drive method to fit your layout and targets.
A: Yes, including on-site installation, training, spare parts, and global technical consultation.
Our disk screen separator stands out with high efficiency, low cost, strong adaptability, and reliable quality. We provide customized solutions to reduce your costs and improve resource utilization.
Contact us for a free quote and customized solution!
