Belt Conveyors

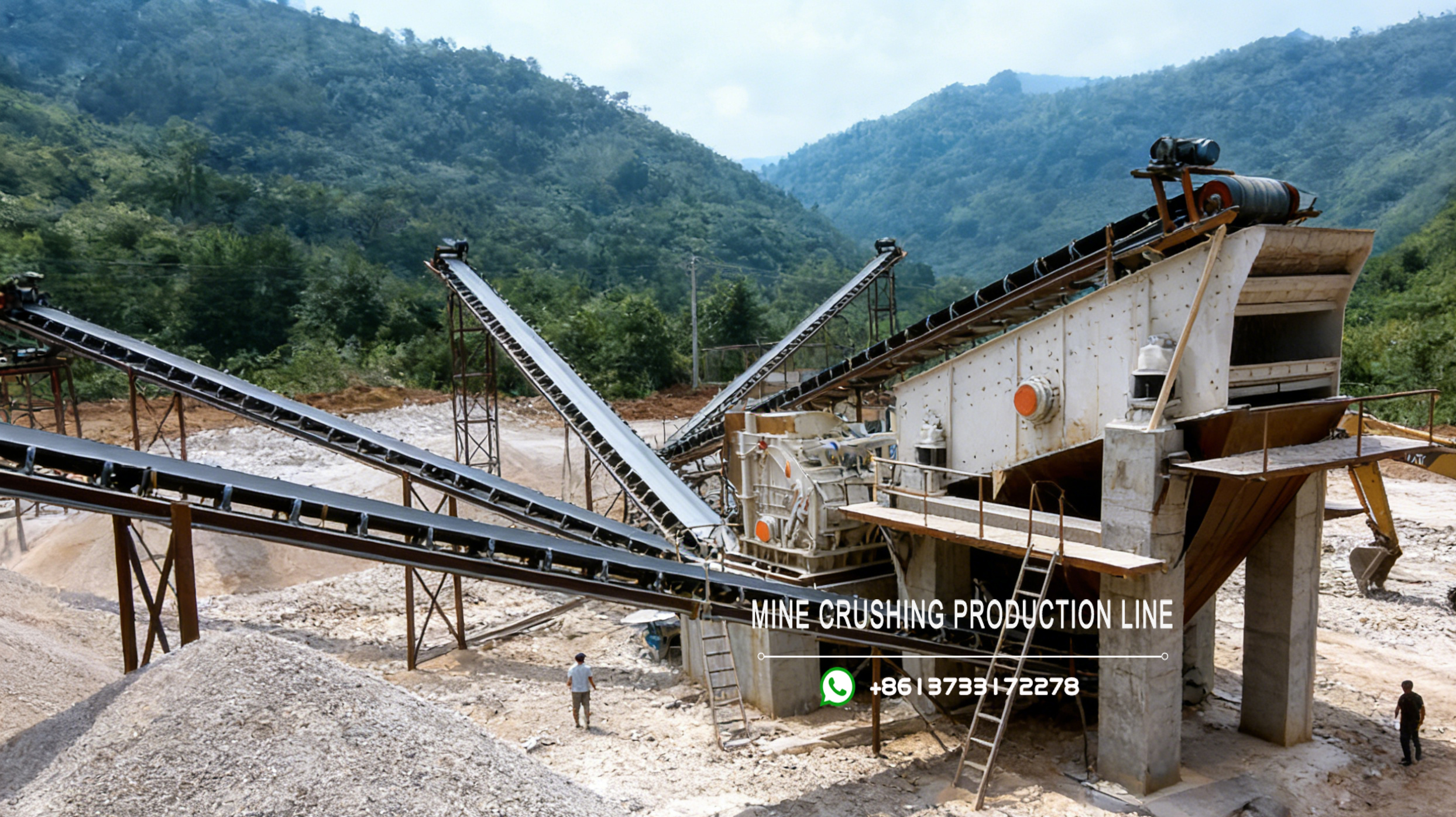

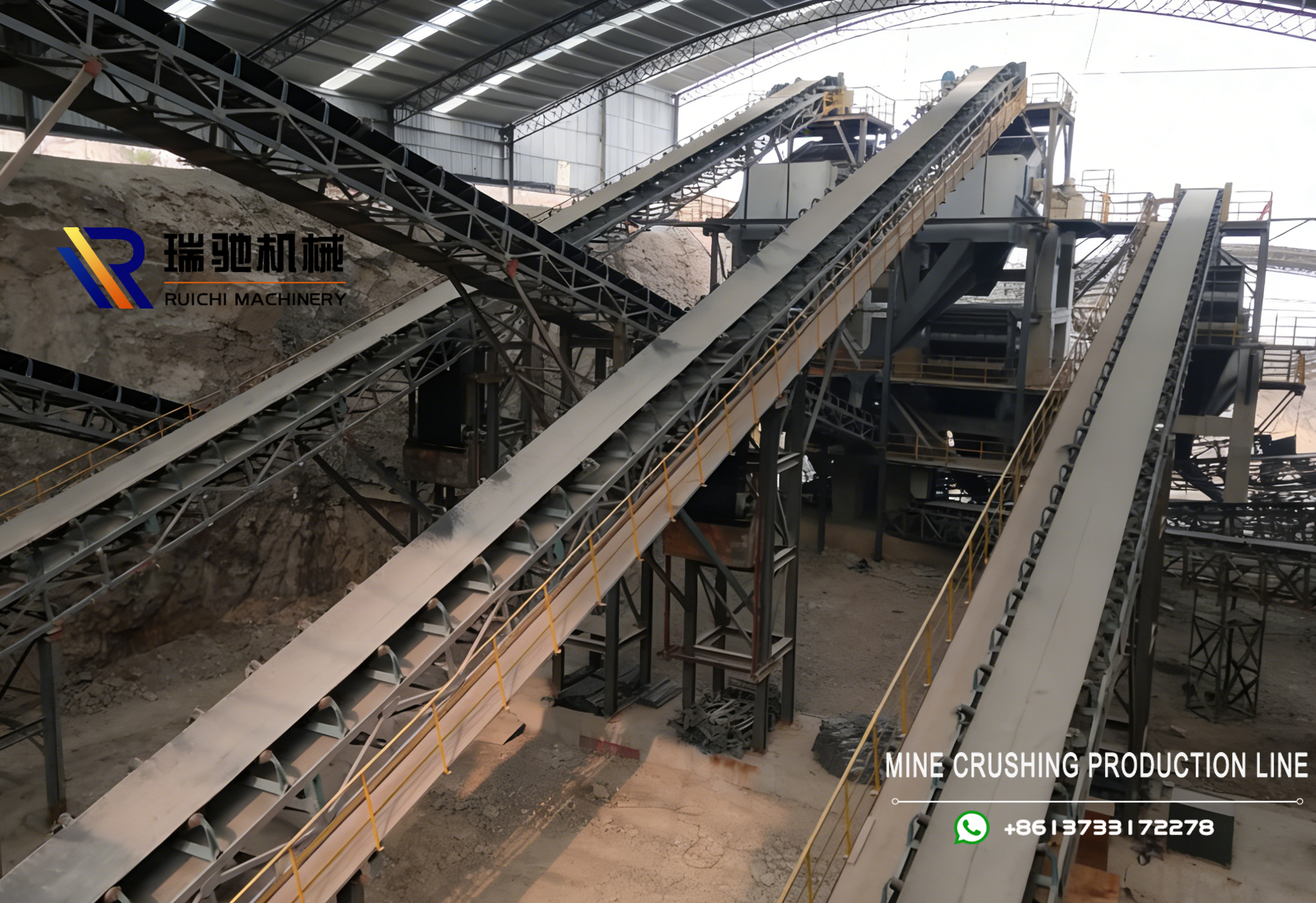

In stone crushing production lines, stable long-distance material transport is essential for linking processing stages. Belt conveyors serve as the core conveying system, connecting jaw crushers, impact sand making machines, vibrating screens and other equipment with high capacity, wide adaptability and low energy consumption. They enable smooth, speed-controlled material transfer, replacing inefficient manual handling and reducing cost and material loss, greatly improving overall line efficiency.
I. Core Advantages
High Capacity & Long DistanceCustomizable belt width (500–1400mm), length (10–500m) and inclination (0–18°) support 20–2000 t/h throughput, far exceeding traditional conveyors, with efficiency dozens of times higher than manual transfer.
Strong Material AdaptabilityWear-resistant steel-cord belts handle hard stone like granite and basalt; non-stick belts suit wet construction waste; enclosed hoods control dust to ≤5mg/m³, balancing durability and environmental protection.
Low Energy & Easy MaintenanceThe motor-reducer-roller structure uses only one-third the energy of scraper conveyors, with low power consumption. Only belts and rollers are consumable, cutting maintenance time by 60%.
Flexible CustomizationSuitable for fixed, inclined, Z/U-shaped or mobile layouts. Retractable belts support tracked/wheel-mounted mobile crushers, adapting to complex on-site conditions.
II. Production Line Collaboration
- With Vibrating Feeders: Synchronize speed to avoid accumulation or idling.
- With Crushing Equipment: Adjust speed based on load of cone crushers and impact crushers, reducing downtime by 50%.
- With Vibrating Screens: Separate finished-product and return-material conveying to complete closed-loop crushing.
- With Bucket Elevators: Coordinate horizontal and vertical lifting with near-zero spillage.
III. Full-Lifecycle Service
- Pre-sales: Custom design based on material, capacity, distance and layout, with 3D layout and simulation.
- In-sales: Fast delivery (7–10 days for standard models), professional installation and quick commissioning.
- After-sales: Nationwide parts warehouses support 48-hour shipment; 24-hour emergency response for repairs.
As a key component in fixed and mobile crushing plants, belt conveyors effectively eliminate material handling bottlenecks. Contact us for customized conveying solutions to optimize your production line.
| Tape width (mm) | 500 | 650 | 800 | 1000 | 1200 | 1400 |
| Belt width - Conveying length (m)/ Power (kw) | ≤12/3 | ≤12/4 | ≤10/4 | ≤10/5.5 | ≤10/7.5 | ≤10/15 |
| 12~20/3.5~5.5 | 12~20/4~5.5 | 10~15/4~5.5 | 10~20/5.5~11 | 10~20/7.5~15 | 10~20/15~22 |
| 20~30/5.5~7.5 | 20~30/5.5~11 | 15~30/5.5~15 | 20~40/11~22 | 20~40/15~30 | 20~40/22~37 |
| Conveying speed (m/s) | 1.3~1.6 | 1.3~2.0 |
| Conveying capacity (t/h) | 40~80 | 80~120 | 120~200 | 200~320 | 290~480 | 320~600 |
